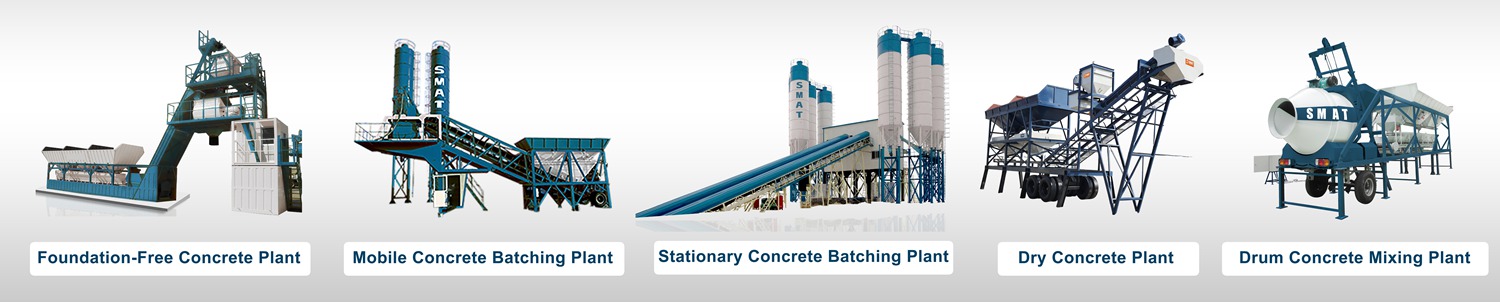

- Stationary Type
- Mobile Type
- Dry Mix Type
- Foundation-Free Type
- Concrete Mixer
Model:HZS25
Productivity: 25m³/h
Mixer Model: JS500
Rated Input Volume: 800L
Model:HZS35
Productivity: 35m³/h
Mixer Model: JS750
Rated Input Volume: 1200L
Model:HZS50
Productivity: 50m³/h
Mixer Model: JS1000
Rated Input Volume: 1600L
Model:HZS60
Productivity: 60m³/h
Mixer Model: JS1000
Rated Input Volume: 1600L
Model:HZS75
Productivity: 75m³/h
Mixer Model: JS1500
Rated Input Volume: 2400L
Model:HZS90
Productivity: 90m³/h
Mixer Model: JS1500
Rated Input Volume: 2400L
Model:HZS120
Productivity: 120m³/h
Mixer Model: MAO3000/2000
Rated Input Volume: 3000L
Model:HZS180
Productivity: 180m³/h
Mixer Model: MAO4500/3000
Rated Input Volume: 4500L
Model: YHZS-25
Productivity: 25m³/h
Discharging Volume: 500L
Feeding Volume: 800L
Model: YHZS-35
Productivity: 35m³/h
Discharging Volume: 750L
Feeding Volume: 1200L

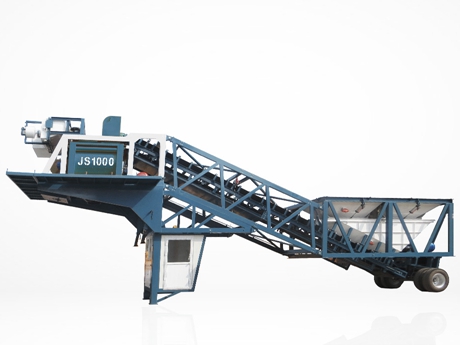

Model: YHZS-60
Productivity: 60m³/h
Discharging Volume: 1000L
Feeding Volume: 1600L
Model: YHZS-90
Productivity: 90m³/h
Discharging Volume: 1500L
Feeding Volume: 2400L
Model: Dry Concrete Batching Plant
Model: Dry Concrete Batching Plant
Model: Dry Concrete Batching Plant
Model: Dry Concrete Batching Plant
Model: FHZS-25
Productivity: 25m³/h
Mixer Model: JS500
Mixer Power: 18.5kw
Model: FHZS-35
Productivity: 35m³/h
Mixer Model: JS750
Mixer Power: 30kw
Model: FHZS-50
Productivity: 50m³/h
Mixer Model: JS100
Mixer Power: 2*18.5kw
Model: FHZS-60
Productivity: 60m³/h
Mixer Model: JS1000
Mixer Power: 2*18.5kw
Model: FHZS-75
Productivity: 75m³/h
Mixer Model: JS1500
Mixer Power: 2*30kw
Model: FHZS-90
Productivity: 90m³/h
Mixer Model: JS1500
Mixer Power: 2*30kw
Model: FHZS-120
Productivity: 120m³/h
Mixer Model: MAO3000/2000(SICOMA)
Mixer Power: 2*37kw

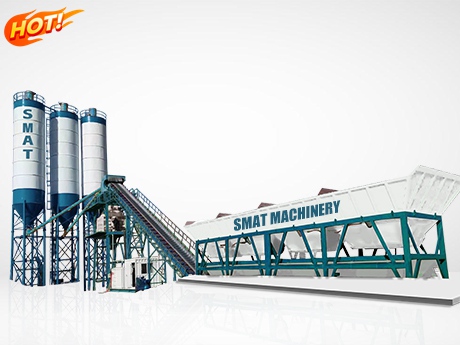

Model: FHZS-180
Productivity: 180m³/h
Mixer Model: MAO4500/3000(SICOMA)
Mixer Power: 2*55kw
Model: JS500
Discharging Capacity: 500L
Charging Capacity: 800L
Productivity: ≥25m³/h
Model: JS750
Discharging Capacity: 750L
Charging Capacity: 1200L
Productivity: ≥37.5m³/h
Model: JS1000
Discharging Capacity:1000L
Charging Capacity: 1600L
Productivity: ≥50m³/h
Model: JS1500
Discharging Capacity: 1500L
Charging Capacity: 2400L
Productivity: ≥75m³/h
Model: JS2000
Discharging Capacity: 2000L
Charging Capacity: 3200L
Productivity: ≥100m³/h
Model: JS3000
Discharging Capacity: 3000L
Charging Capacity: 4800L
Productivity: ≥150m³/h
Model: JZC Series
Charging Capacity: 250L-500L
Productivity: 7-20m³/h
Aggregates: 60mm
Model: JZM Series
Charging Capacity: 800-1200L
Productivity: 18-22.5m³/h
Aggregates: 60mm
Description
SMAT has been serving a large number of concrete batching plant customers in the Philippines. We have a wide range of mixing plants with customized options for capacity, mixing efficiency, feeding speed, and more depending on your needs. Our customers cover cities like Manila, Cebu, Davao, etc. Please feel free to contact us.
Hot Sale
Stationary Type HZS35
HZS35 is SMAT's hottest-selling concrete batching plant model. It meets the needs of most customers for your house construction and road construction projects. The Philippines is also our main sales country if you need to see the site. Please contact us to arrange the time.
- Model: HZS35
- Productivity: 35m³/h
- Mixer Model: JS750
- Rated Input Volume: 1200L
Stationary Type HZS60
HZS60 is a hot seller because this model will not overproduce or fail to meet various demands. It can either make concrete for your project or be the foundation for your next step in selling commercial concrete.
- Model: HZS60
- Productivity: 60m³/h
- Mixer Model: JS1000
- Rated Input Volume: 1600L

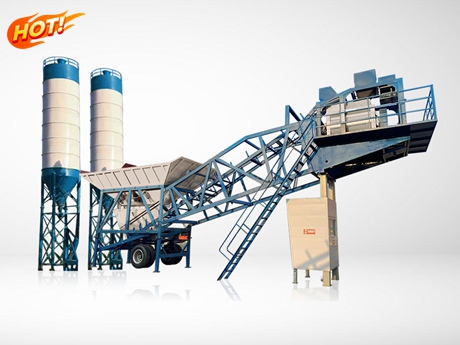

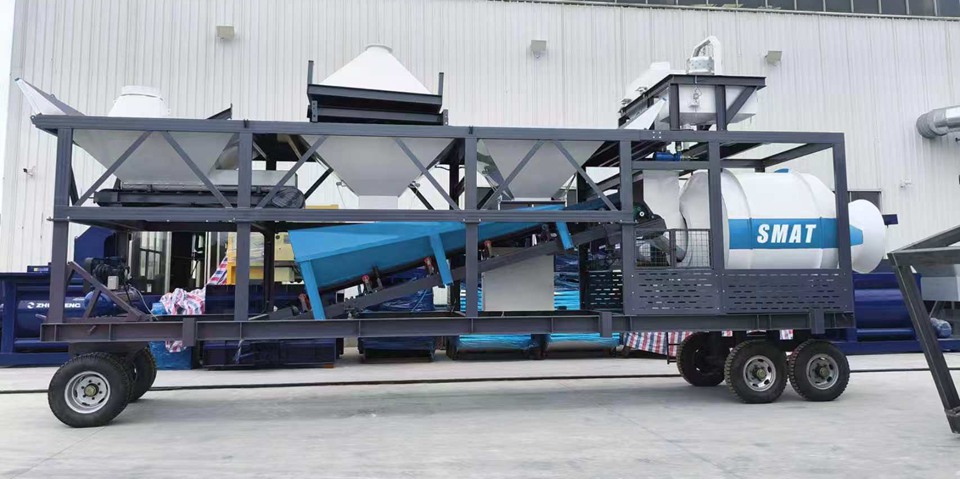

Mobile Type YHZS35
YHZS35 is SMAT's hottest selling mobile concrete batching plant for sale. It meets both the needs of high production and the most convenient mobile at the same time. If you are looking for a mobile batching plant for your construction project, this one will be an excellent choice for you.
- Model: YHZS35
- Productivity: 35m³/h
- Discharging Volume: 1000L
- Feeding Volume: 1600L
Foundation Free Concrete Batching Plant FHZS60
Foundation-free concrete batching plants are designed to be easily transported. They can be moved from one location to another quickly and efficiently, making them ideal for projects that require frequent relocations.
- Model: FHZS60
- Productivity: 60m³/h
- Mixer Model: JS1000
- Mixer Power: 2*18.5kw
Foundation Free Concrete Batching Plant FHZS90
Foundation-free concrete batching plants require no foundation and require minimal technical expertise and equipment to set up a foundation-free plant, thereby reducing dependence on professional contractors. Can be assembled and operational in less time, resulting in faster project turnaround.
- Model: FHZS90
- Productivity: 90m³/h
- Mixer Model: JS1500
- Mixer Power: 2*30kw

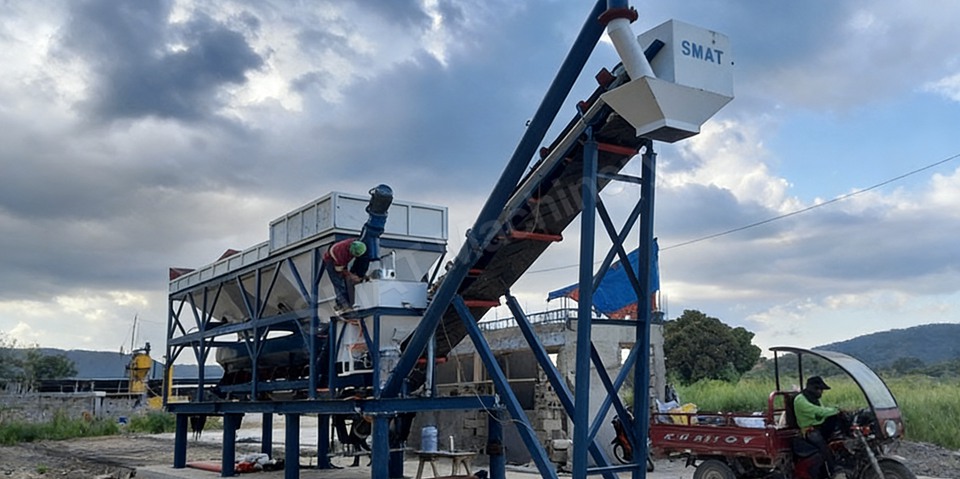

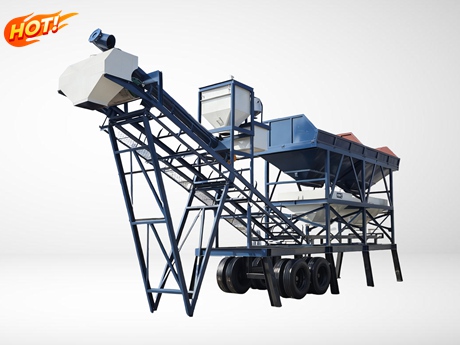

Dry Concrete Batching Plant
In a dry concrete batching plant, ingredients such as aggregate, cement and additives are transported to an aggregate silo or directly into a tanker for batching. Water is added to it to produce concrete.
JS Concrete Mixer
JS concrete mixer is one of the core parts of the mixing plant, SMAT factory has a lot of production experience. Offer you competitive factory price.

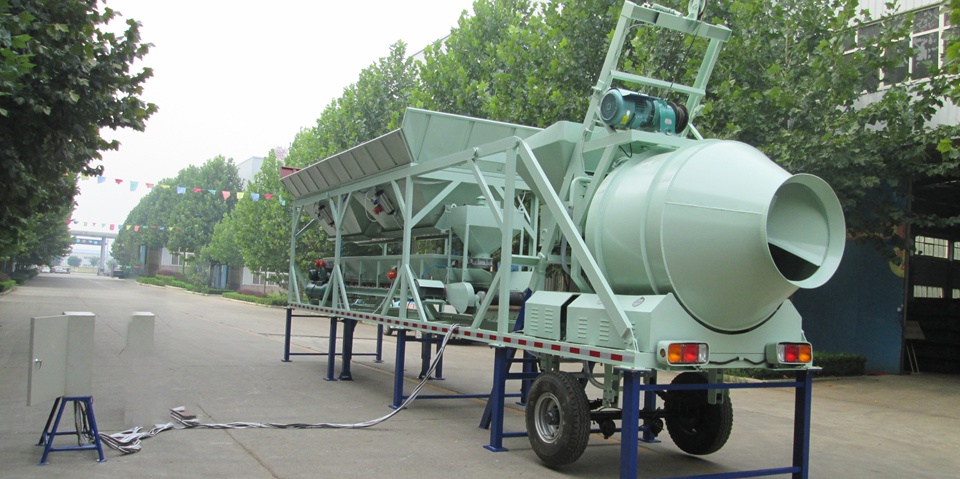

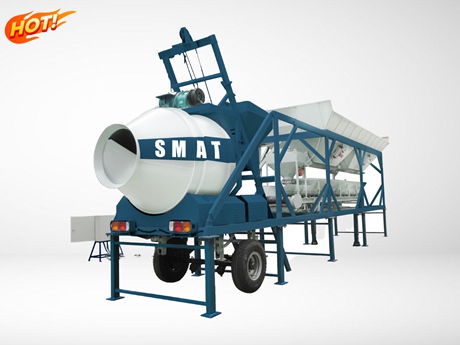

JZC/JZM Concrete Mixer Machine
These series concrete mixer can mix plastic and dry-hard concrete, forward stirring andreversal discharging. lt is combinedto medium & small scale batching plant with batching machine ,applies to constructionsite, road, bridge and hydropower etc., especially for urban residential construction.

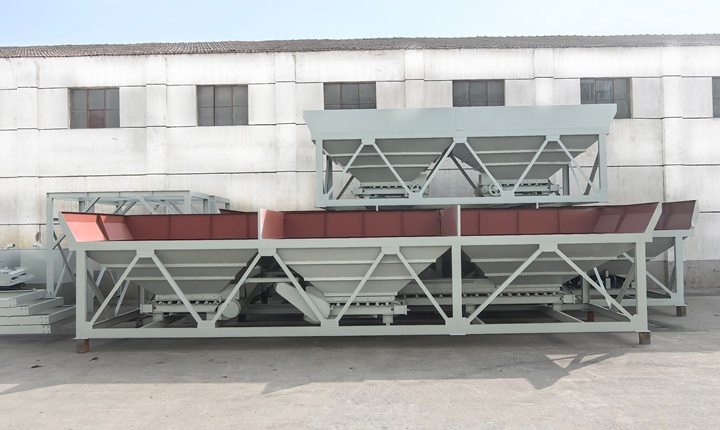

PLD Concrete Batching Machine
SMAT's PLD range of batch machine has a wide range of models for you to choose from. Individual weighing or centralised weighing, fully automatic operation for customer convenience.
SMAT Promise

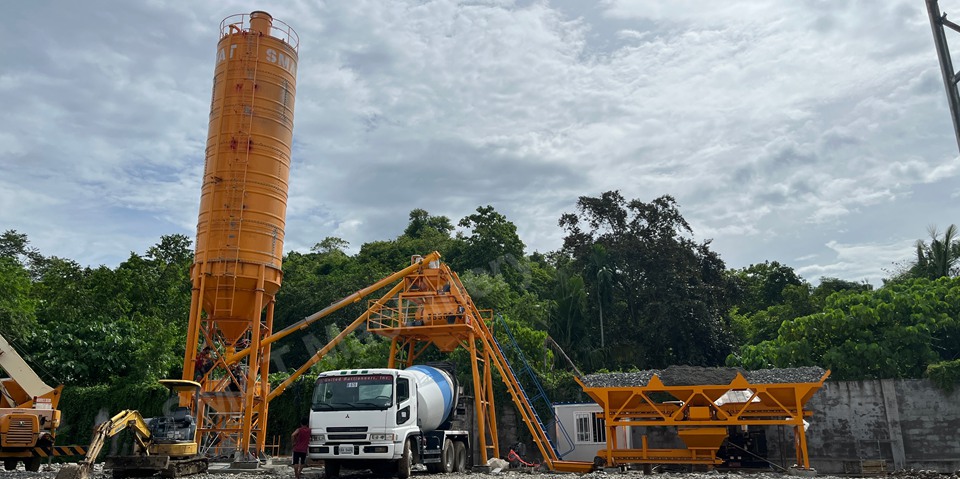

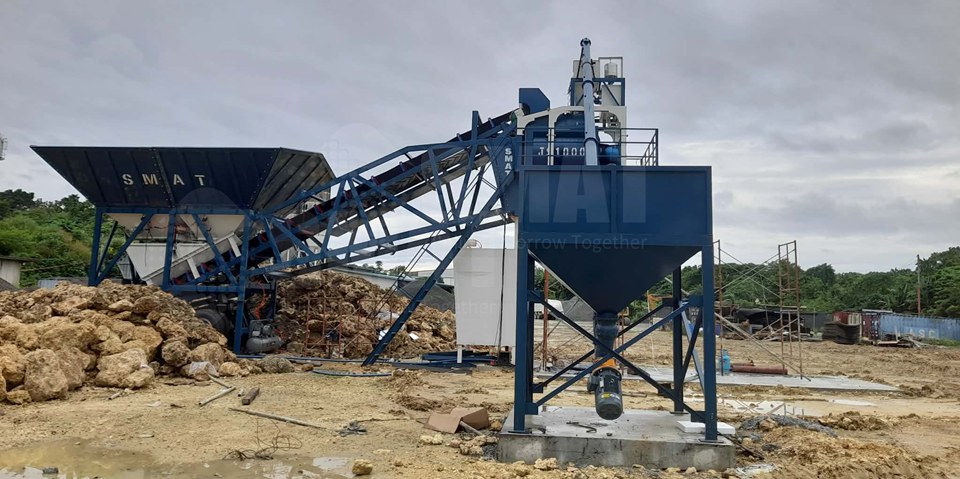

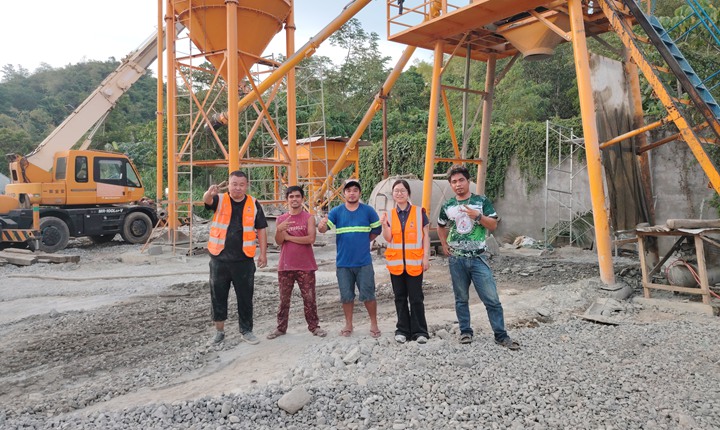

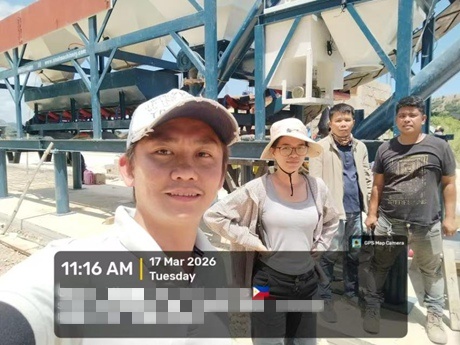

Related Cases
Please check more about SMAT concrete batching plant case in the Philippines
The Components of SMAT Concrete Batching Plant

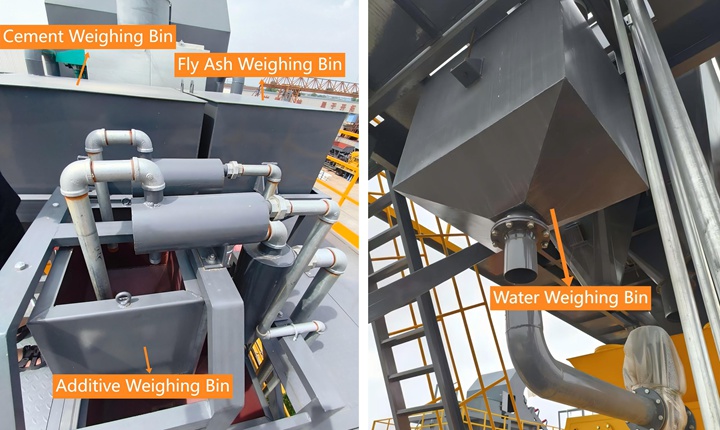

SMAT concrete batching plant mainly consists of five main systems: mixer, material weighing system, conveying system, storage system, and control system. If you want to know more about the basic components, SMAT will introduce them to you as follows.
Concrete Mixer
SMAT concrete batching plant introduces advanced mixing technology and is equipped with an efficient mixing system to ensure uniform and stable quality of concrete. It has high production efficiency, strong mixing ability, and strong flexibility.
01

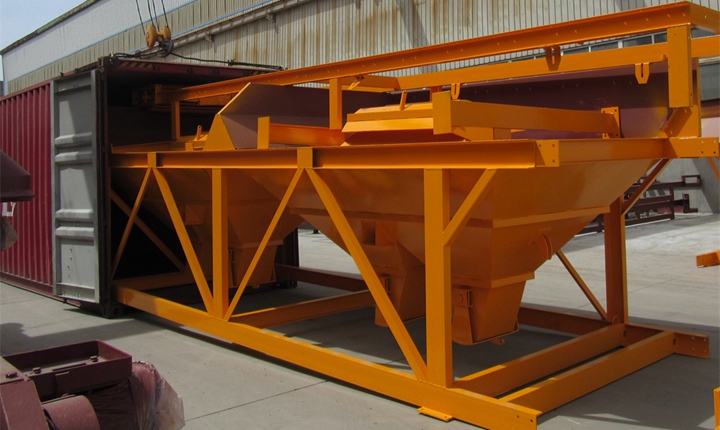

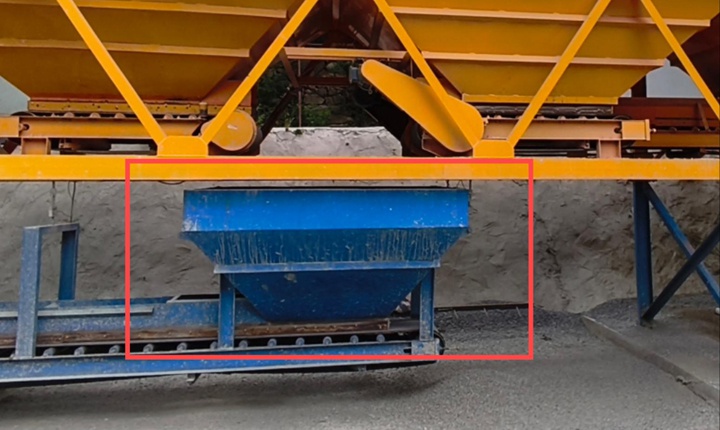

Aggregates Batcher
Equipped with an intelligent management system to realize real-time monitoring and data analysis of the production process. It helps to adjust production parameters in time and improve production efficiency.
02

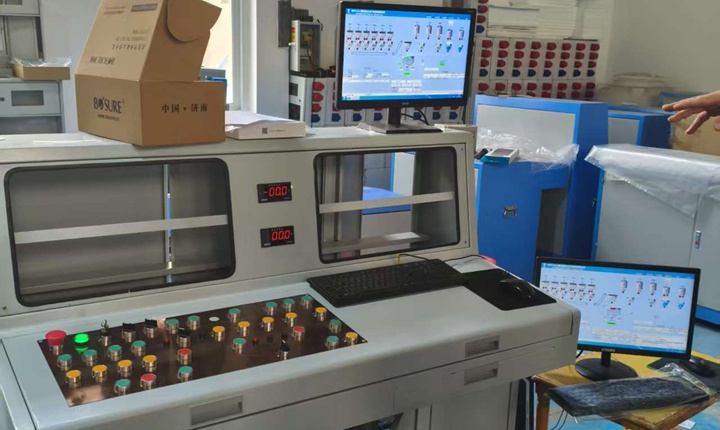

Control System
Equipped with an automated control system, it can realize fully automatic production operations, improve production efficiency, and reduce labor costs
03

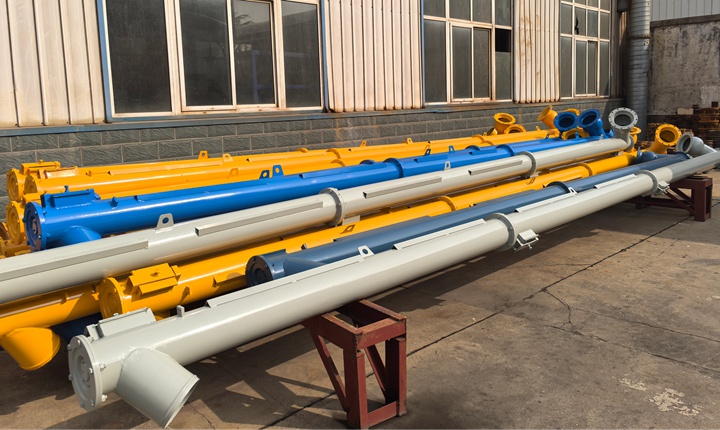

Conveying System
Use an imported lubrication system and shaft drive system. All components have reliable quality and stable performance.
04

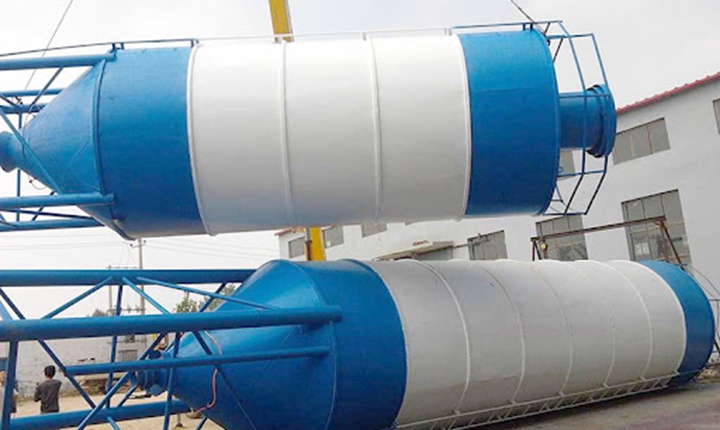

Cement Bin
Use wear-resistant materials. The support frame and aggregate bin are designed to be strong and durable for longer service life. The structural design is reasonable and the maintenance is gradual. Reduce downtime and increase production efficiency
05
SMAT was established in 1988, specializing in one-stop service for design, R&D, production, sales, and installation of concrete machinery and mining machinery. From the first machine off the production line to today’s products all over the world, we always believe that providing high-quality products and timely efficient after-sales service is the key to business development.

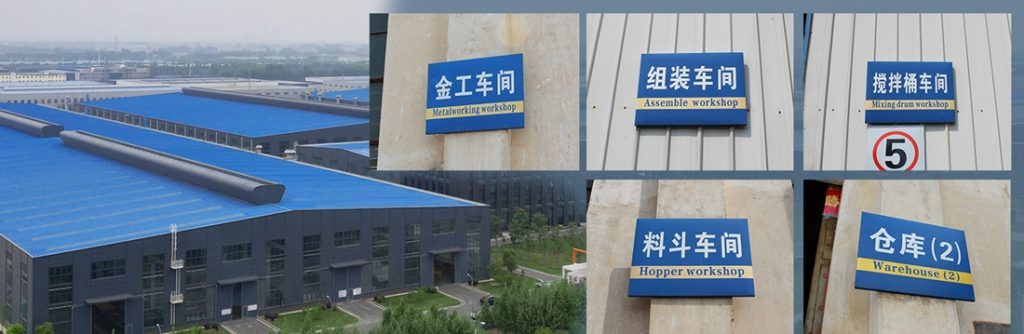

Currently, SMAT has several production plants in China. The total area is 300,000 square meters with 28 perfect production lines. As a top manufacturer of machinery for the construction industry, SMAT focuses on making innovative technologies, manufacturing better quality products, and providing comprehensive solutions for the projects of our global customer partners. Our products have been exported to more than 80 countries and we have set up service stations in many countries.
Latest Shipping
What SMAT Would Do After Confirm Oder
SMAT concrete batching plant is a mechanized, automated, high-efficiency, and integrated concrete mixing equipment that is widely used in concrete production projects with large quantities of work and long construction periods. SMAT has successfully exported to more than 80 countries with our technological innovation and R&D strength in the field of concrete machinery, as well as the high performance and versatility of products.
Quality Service Before Shipping
SMAT takes every order seriously. Every step of the process is checked by special person. Every important component is pre-tested before shipment, especially the mixer machine. It also ensures that free spare parts are given to the customer to avoid any possible accidents.
01
Packing and shipping
SMAT has nearly 30 years of export experience. The concrete batching plants manufactured by us have been exported to different countries. The Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
02

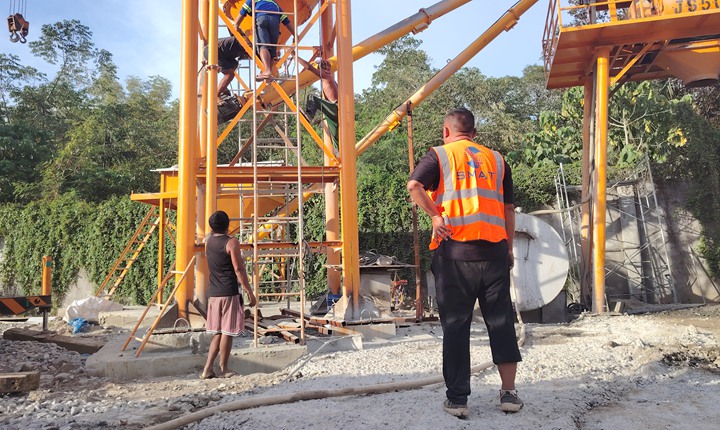

Free Technical Service in the Philippines
SMAT provides engineers with on-site installation guidance, commissioning, and training services. And SMAT engineers have rich experience in mechanical, electrical, and civil engineering. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.
03
Advantage
SMAT Concrete Batching Plant in the Philippines:
Service
- SMAT's local office is located in Quezon City, Manila.
- Filipino engineers team are always available for on-site installation guidance, commissioning, and training services.
- SMAT provides regular visiting to clients sites, thus can promptly correct improper operations.
- SMAT accepts Peso Payments.
- Adequate stock of original spare parts to ensure the smooth operation of the project.
- Free customized product appearance color and Logo, provide ODM support.
- 7*24 hours online free consulting service, including quotation, 2-3 sets of program design, AutoCAD & 3D drawings, and site planning.
Specification
Stationary Concrete Batching Plant Specification
| Model | HZS25 | HZS-35 | HZS-50 | HZS-60 | HZS-75 | HZS-90 | HZS-120 | HZS-180 |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | MAO3000/2000(SICOMA) | MAO4500/3000(SICOMA) |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×18.5 | 2×30 | 2×30 | 2×37 | 2×55 |
| Mixing Cycle Period (s) | 72 | 72 | 72 | 60 | 72 | 60 | 60 | 60 |
| Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3000 | 4500 |
| Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 4×7 | 3×12 | 4×15 | 4×15 | 4×20 |
| Category of Aggregate | 2/3 | 2/3/4 | 3/4 | 4/5 | 4/5 | 4/5 | 4/5/6 | 4/5/6 |
| Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈40 | ≈30 | ≈68 | ≈93 | ≈101 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈110 | ≈140 | ≈160 | ≈220 | ≈290 |
Mobile Concrete Batching Plant Specification:
| Parameters/Model | YHZS-25 | YHZS-35 | YHZS-60 | YHZS-90 |
| Theoretical Productivity (m³/h) | 25 | 35 | 60 | 90 |
| Mixer Discharging Volume (L) | 500 | 750 | 1000 | 1500 |
| Mixer Feeding Volume (L) | 800 | 1200 | 1600 | 2400 |
| Mixer Motor Power (kW) | 18.5 | 30 | 18.5×2 | 30×2 |
| Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Aggregate Material Quantity (m3) | 3×3 | 5×3 | 8×3 | 12×3 |
| Cycle Period (s) | 60 | 60 | 60 | 60 |
| Max. Aggregate Size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Cement Silo (t) (optional) | 50×1 | 50×1 | 100×1 | 100×1 |
| Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% |
| Powder Material Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Water Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Additive Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
| Traction Type | Semi-trailer | |||
| Control Mode | Full Automatic Computer PLC Control | |||
| Power Supply | 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase | |||
Foundation-Free Batching Plant Specification
| Model | FHZS25 | FHZS-35 | FHZS-50 | FHZS-60 | FHZS-75 | FHZS-90 | FHZS-120 | FHZS-180 |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | MAO3000/2000(SICOMA) | MAO4500/3000(SICOMA) |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×18.5 | 2×30 | 2×30 | 2×37 | 2×55 |
| Mixing Cycle Period (s) | 72 | 72 | 72 | 60 | 72 | 60 | 60 | 60 |
| Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3000 | 4500 |
| Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 4×7 | 3×12 | 4×15 | 4×15 | 4×20 |
| Category of Aggregate | 2/3 | 2/3/4 | 3/4 | 4/5 | 4/5 | 4/5 | 4/5/6 | 4/5/6 |
| Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈40 | ≈30 | ≈68 | ≈93 | ≈101 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈110 | ≈140 | ≈160 | ≈220 | ≈290 |
