Description SMAT Mobile Concrete Batching Plants are becoming increasingly popular in the Philippines. This is because there is no need to work at a fixed…
SMAT Mobile Concrete Batching Plants are becoming increasingly popular in the Philippines. This is because there is no need to work at a fixed location, saving the cost of laying foundations. Mobile batching plants are more suitable for short-term and small scale projects.
Model: YHZS-25
Productivity: 25m³/h
Discharging Volume: 500L
Feeding Volume: 800L
Model: YHZS-35
Productivity: 35m³/h
Discharging Volume: 750L
Feeding Volume: 1200L
Model: YHZS-60
Productivity: 60m³/h
Discharging Volume: 1000L
Feeding Volume: 1600L
Model: YHZS-90
Productivity: 90m³/h
Discharging Volume: 1500L
Feeding Volume: 2400L
Please check more about SMAT concrete batching plant case in the Philippines
SMAT mobile concrete batching plant mainly consists of five main systems: mixer, material weighing system, conveying system, storage system, and control system. If you want to know more about the basic components, SMAT will introduce them to you as follows.
SMAT concrete batching plant introduces advanced mixing technology and is equipped with an efficient mixing system to ensure uniform and stable quality of concrete. It has high production efficiency, strong mixing ability, and strong flexibility.
01
Equipped with an intelligent management system to realize real-time monitoring and data analysis of the production process. It helps to adjust production parameters in time and improve production efficiency.
02
Equipped with an automated control system, it can realize fully automatic production operations, improve production efficiency, and reduce labor costs
03
Use an imported lubrication system and shaft drive system. All components have reliable quality and stable performance.
04
Use wear-resistant materials. The support frame and aggregate bin are designed to be strong and durable for longer service life. The structural design is reasonable and the maintenance is gradual. Reduce downtime and increase production efficiency
05
SMAT concrete batching plant is a mechanized, automated, high-efficiency, and integrated concrete mixing equipment that is widely used in concrete production projects with large quantities of work and long construction periods. SMAT has successfully exported to more than 80 countries with our technological innovation and R&D strength in the field of concrete machinery, as well as the high performance and versatility of products.
SMAT takes every order seriously. Every step of the process is checked by special person. Every important component is pre-tested before shipment, especially the mixer machine. It also ensures that free spare parts are given to the customer to avoid any possible accidents.
01
SMAT has nearly 30 years of export experience. The concrete batching plants manufactured by us have been exported to different countries. The Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
02
SMAT provides engineers with on-site installation guidance, commissioning, and training services. SMAT engineers have rich experience in mechanical, electrical, and civil engineering. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.
03

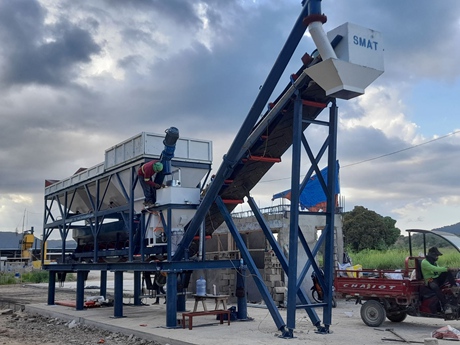

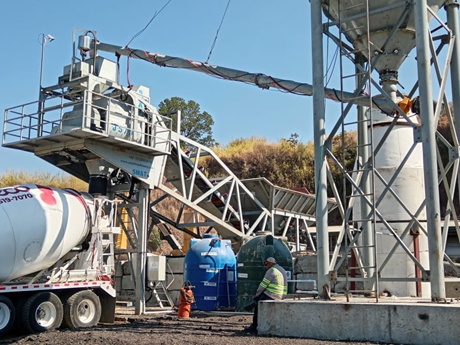

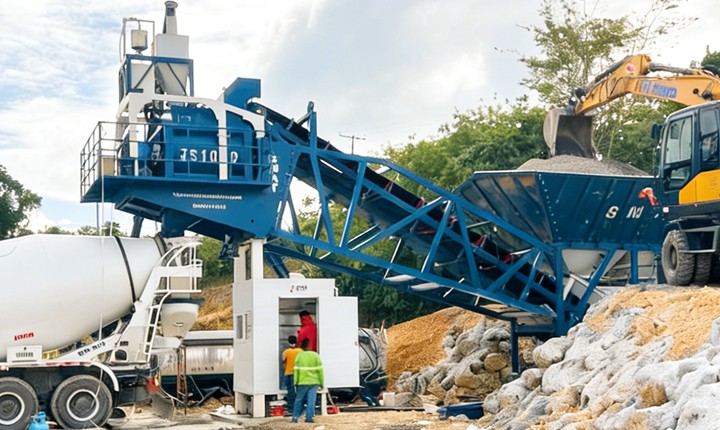

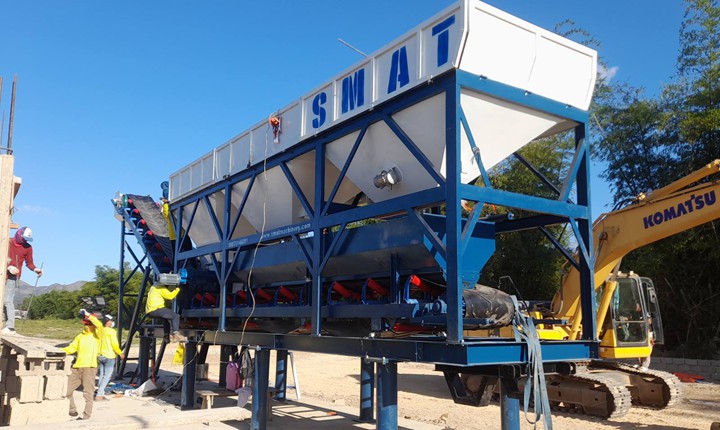

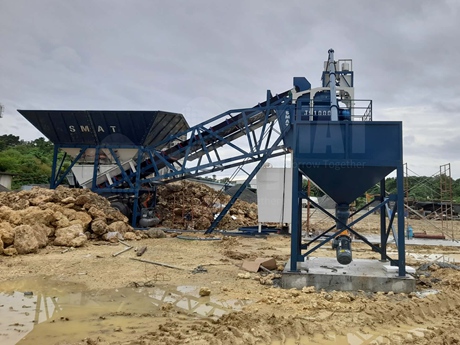

SMAT Concrete Batching Plant in the Philippines:
SMAT provides various concrete machines for your construction project
| Parameters/Model | YHZS-25 | YHZS-35 | YHZS-60 | YHZS-90 |
| Theoretical Productivity (m³/h) | 25 | 35 | 60 | 90 |
| Mixer Discharging Volume (L) | 500 | 750 | 1000 | 1500 |
| Mixer Feeding Volume (L) | 800 | 1200 | 1600 | 2400 |
| Mixer Motor Power (kW) | 18.5 | 30 | 18.5×2 | 30×2 |
| Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Aggregate Material Quantity (m3) | 3×3 | 5×3 | 8×3 | 12×3 |
| Cycle Period (s) | 60 | 60 | 60 | 60 |
| Max. Aggregate Size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Cement Silo (t) (optional) | 50×1 | 50×1 | 100×1 | 100×1 |
| Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% |
| Powder Material Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Water Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Additive Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
| Traction Type | Semi-trailer | |||
| Control Mode | Full Automatic Computer PLC Control | |||
| Power Supply | 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase | |||
